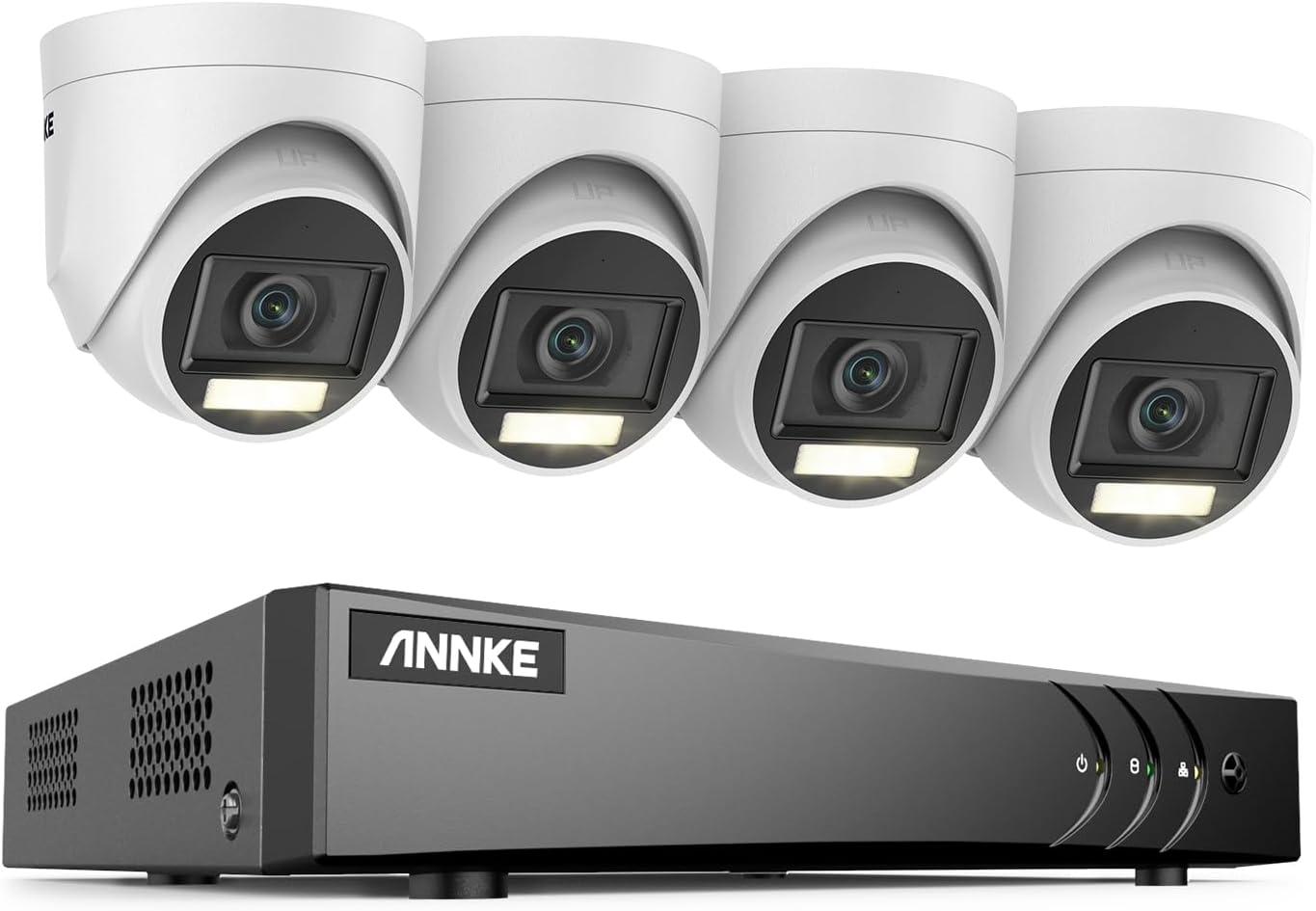

ANNKE 16CH Security Camera System, 5-in-1 3K Lite DVR Recorder with AI Human/Vehicle Detection, 4X 3K Wired IP67 Waterproof CCTV Outdoor Cameras with Smart Dual Light, One-Way Audio for Home, NO HDD

DVR Description:

Up to 3K high definition live viewing
Up to 3K Lite recording & playback

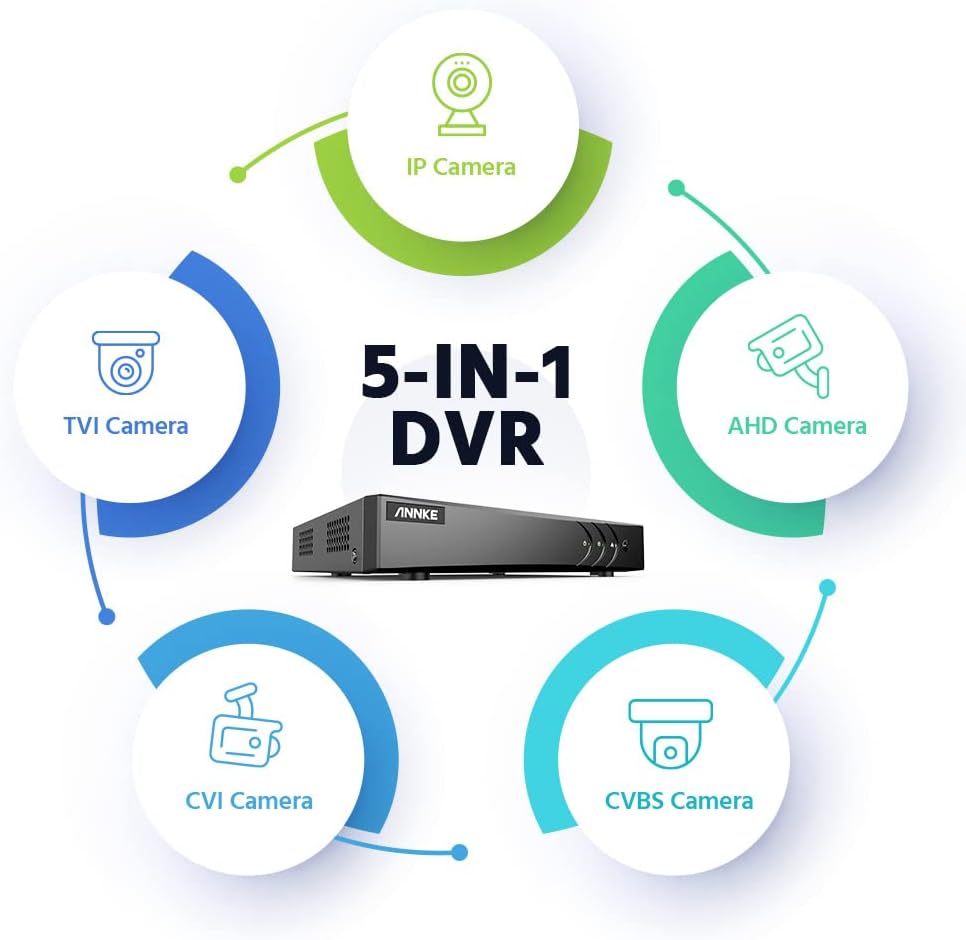

Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1

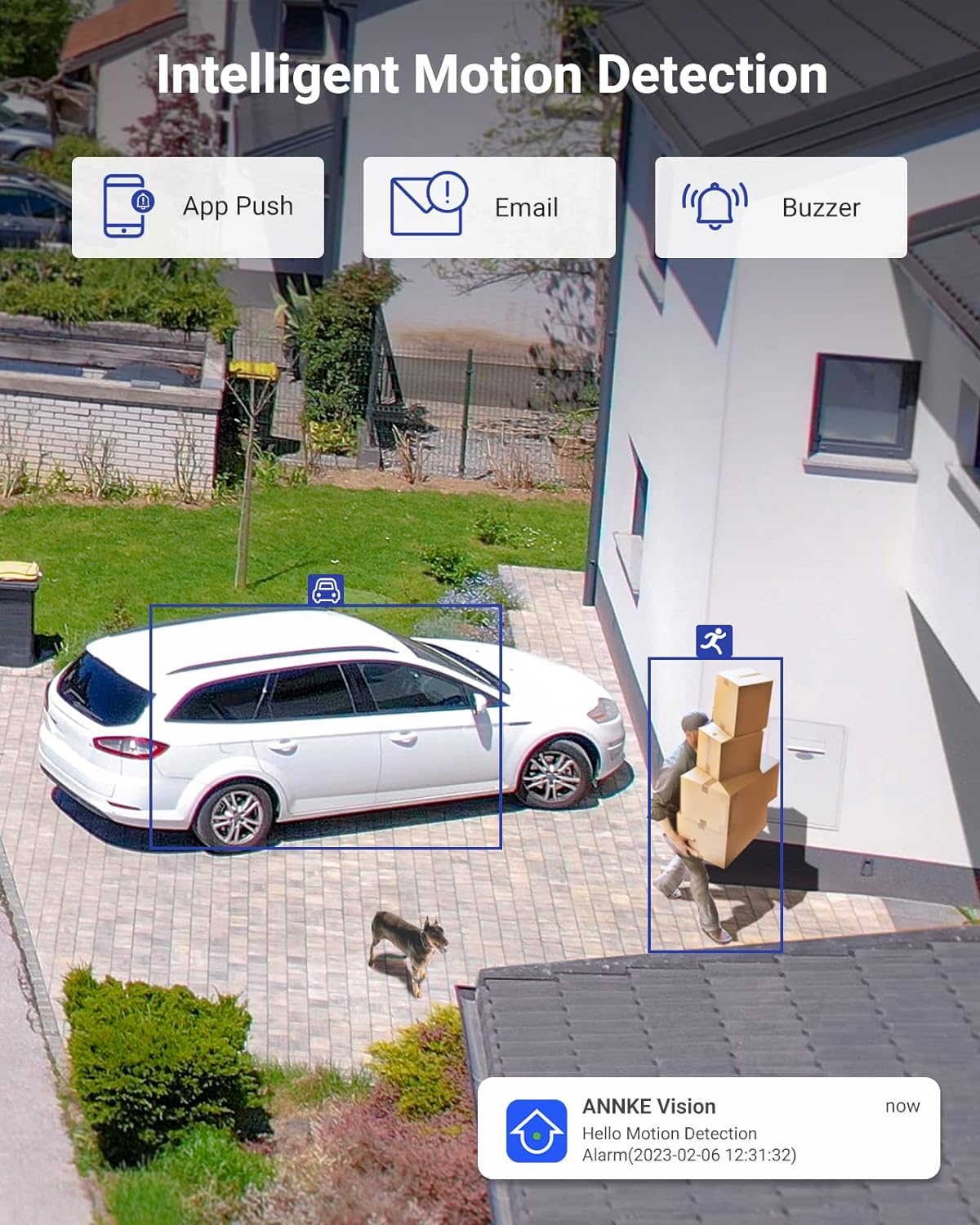

Deep learning based human and vehicle targets classification of Motion Detection 2.0 for all analog channels
Quick search by object or event type

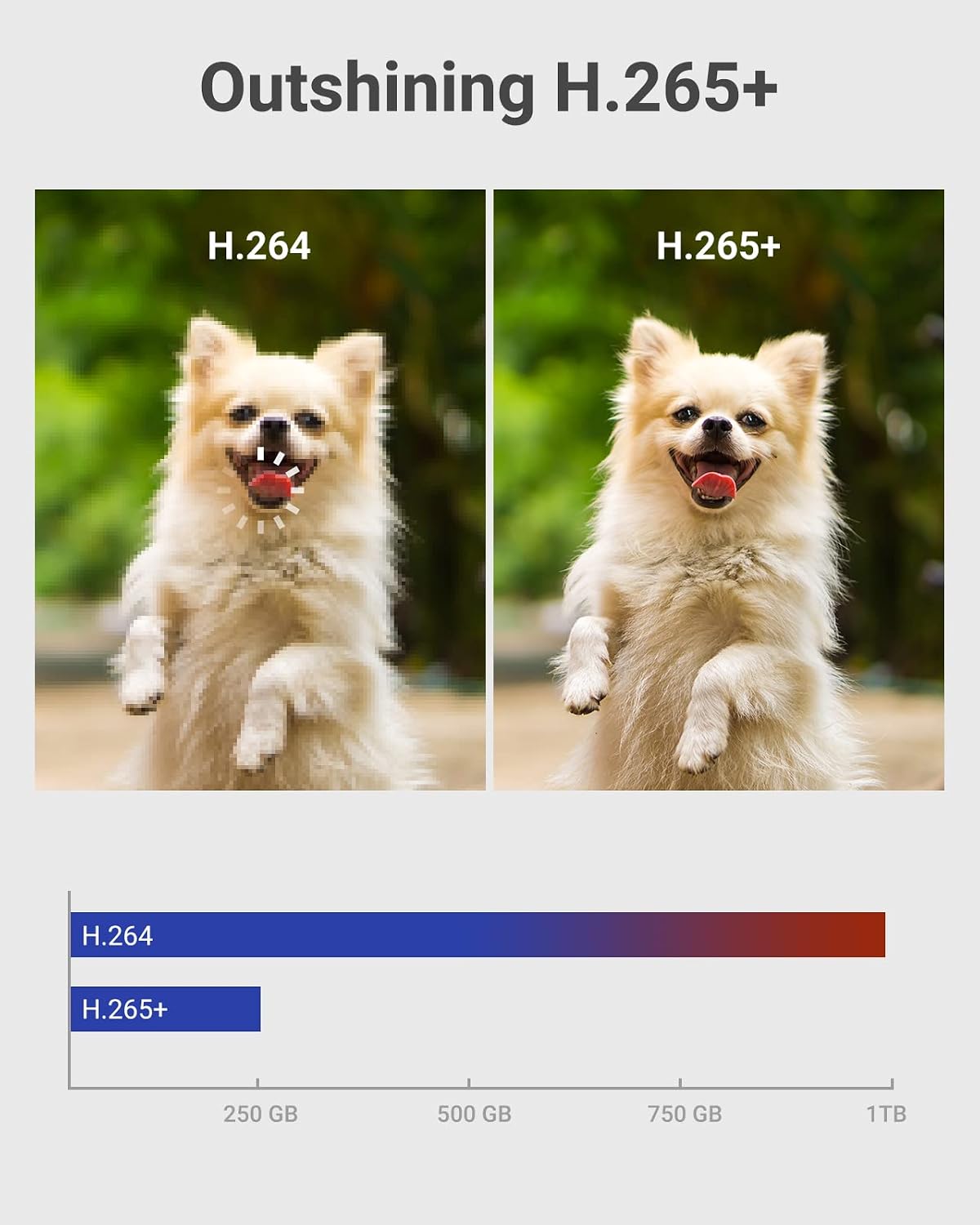

Video Compression: H.264+/H.264/H.265/H.265+
Video Input: 16CH Analog HD/Analog + 2CH IP Video (up to 24 channel when IP enhanced mode on)
Video Output: HDMI and VGA Up to 1080P
Audio Input: 1-ch RCA, 16-ch via coaxial cable
Audio Output: 1-ch RCA
Supported Camera Types: 'Support HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p;
Support AHD Input: 4MP, 1080p, 720P; Support CVI Input: 4MP, 1080p, 720P; Support CVBS Input;
Support IP Video Input：6MP/5MP/4MP/3MP/1080P/720P'
Analog HD Playback Resolution: 3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps
IPC Playback Resolution: Up to 6MP
Max Playback Channel 4-ch
HDD Capacity: Up to 10TB capacity

Camera Description:

High quality imaging with 3K, 2960 × 1665 resolution
2.8 mm fixed focal lens@F1.2
One port for four switchable signals (TVI/AHD/CVI/CVBS）

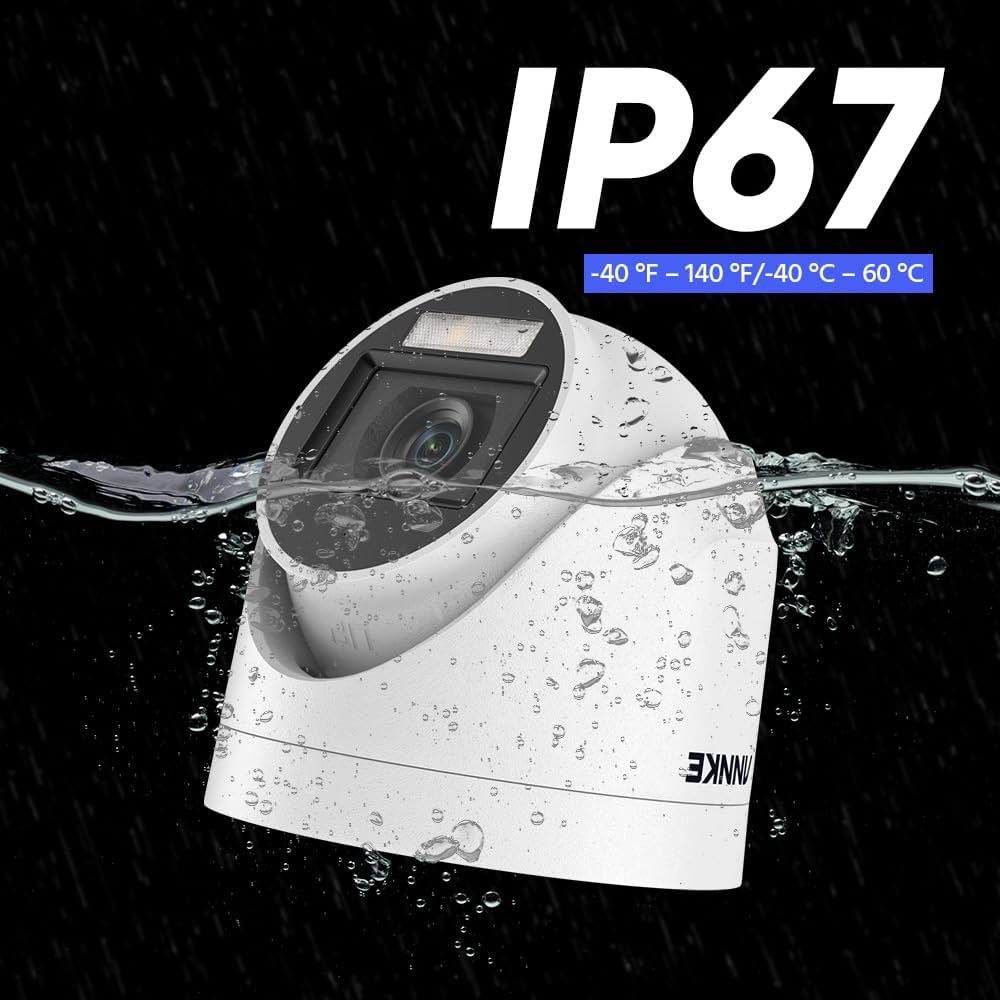

Water and dust resistant (IP67)

Image sensor: 3K CMOS Image sensor
Video Resolution: 2960 (H) × 1665 (V) (16:9)
Frame Rate: 'TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps; AHD: 5 MP@20 fps,
4MP@25 fps/30 fps; CVI: 4 MP@25 fps/30 fps; CVBS: PAL/NTSC'
Lens: 2.8mm
Min.Illumination: Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Angle of View: Horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129°
Supplement Light Range: IR : Up to 30 m, white Light : Up to 20 m
Supplement Light Mode: IR light works normally, and it switches to white light when human or vehicle are detected at night.
Audio: Built-in mic

Additional details

• Item Dimensions : 14.5 x 11.8 x 7.5 inches

Features & Specs

• Camera Description : Front
• Compatible Devices : Cameras, Personal Computers เนต
• Connectivity Technology : Wired
• Focal Length Description : 2.8 millimeters
• Lens Type : Fixed
• Night Vision : Night color
• Night Vision Range : 82 Feet
• Number of Channels : 16
• Optical Sensor Technology : CMOS
• Other Special Features of the Product : Image, Motion Sensor, Night Vision, Waterproof
• Power Source : Corded Electric
• Recording Mode : 3K
• Signal Format : Analog
• Smart Home Compatibility : Smart Home Compatible
• Video Capture Resolution : 1520, 1536p, 720p ตอไป
• Viewing Angle : 107 Degrees

Item details

• ASIN : B0CHMQRF6L
• Brand : ANNKE

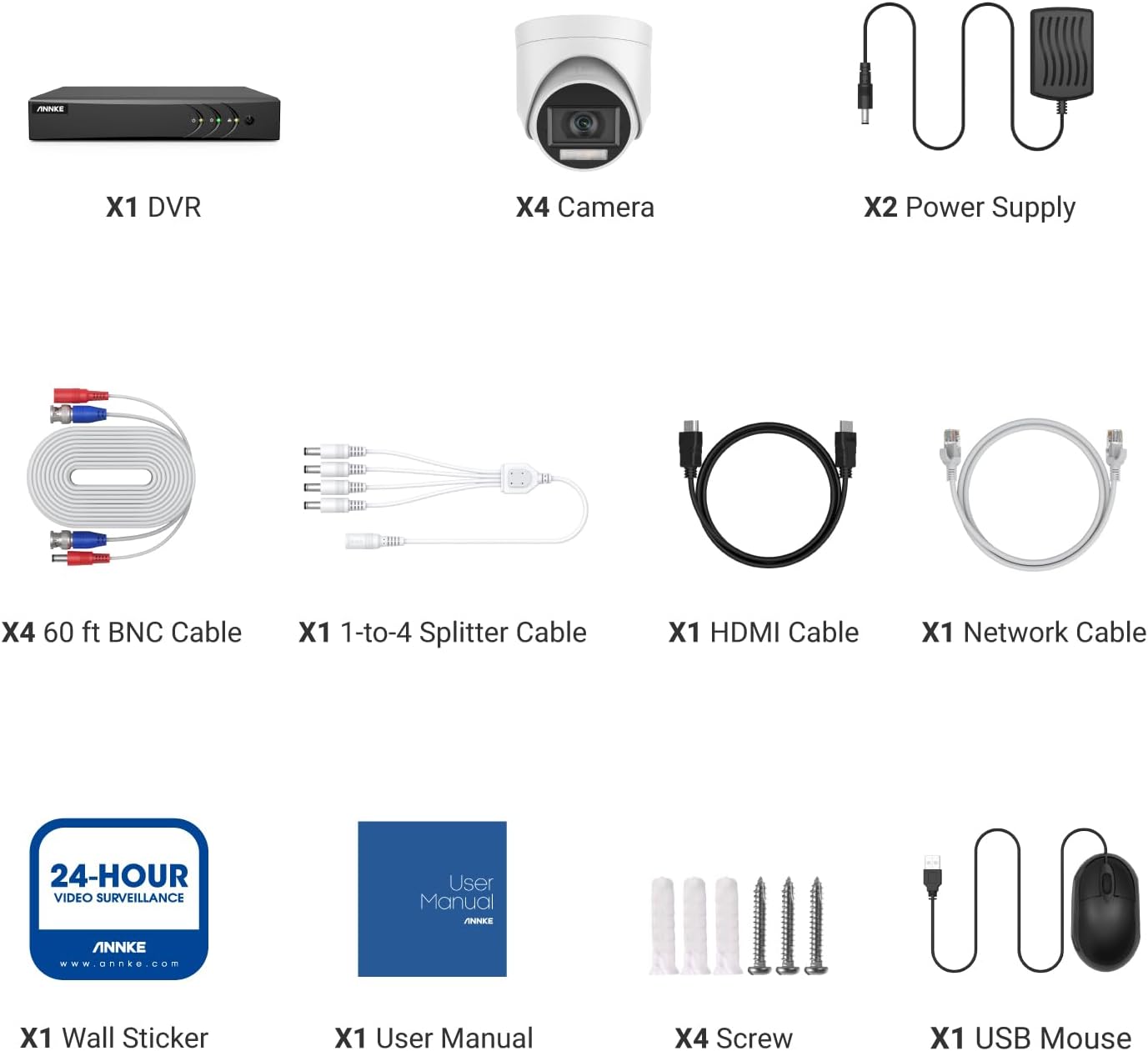

• Built-In Media : 1x 16CH 3K Lite DVR&No HDD, 1x Ethernet Cable&HDMI Cable&USB Mouse, 1x User Manual&Wall Sticker, 2x Power Adapters&1x 1-to-4 Splitter Cables, 4x 3K CCTV Cameras&BNC Cables&Screw Kits
• Manufacturer : ANNKE
• Model Number : DW61LD-R1CW
