600 Watts Wind Solar Powered System(Hybrid System Kit): 24V 400W Wind

600 Watts Wind Solar Powered System(Hybrid System Kit): 24V 400W Wind Generator + 2pcs 100W Polycrystalline Solar Panel + Solar Controller+Wind Controller+Accessories

$177.09 $499.00

Package include:
1* 400w wind turbine
2* 100w poly solar panel( each has 90cm of special cable with conectors attached to the junction box)

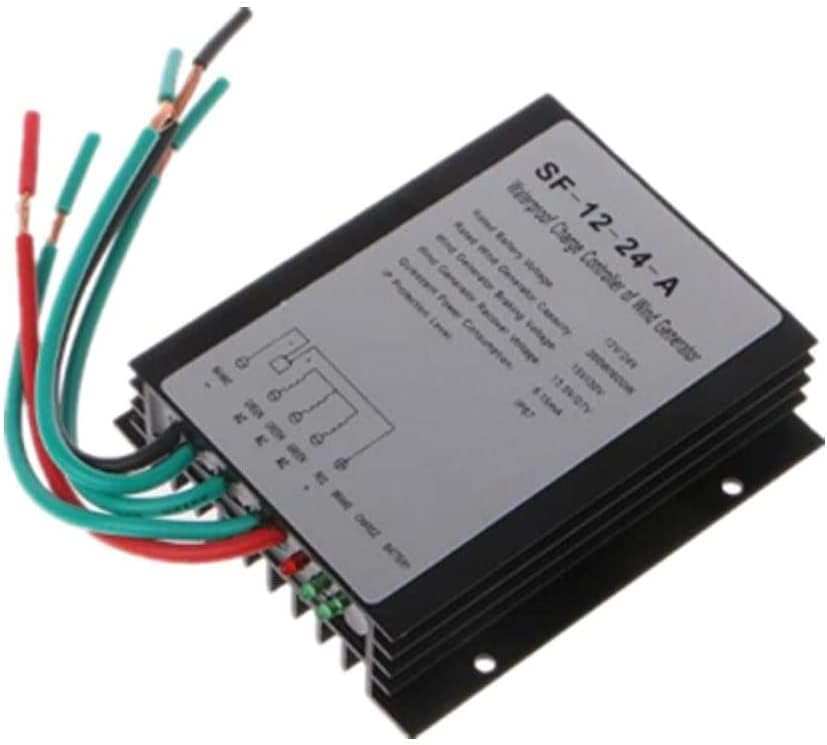

1* wind controller
1* 20A Solar controller
1* cable with alligator clip
1* Total 5M red and black solar cable with connectors,
1* Pair MC4 Y brach connector,

NOTES:
Please kindly advise you need 12V or 24V system when place order.

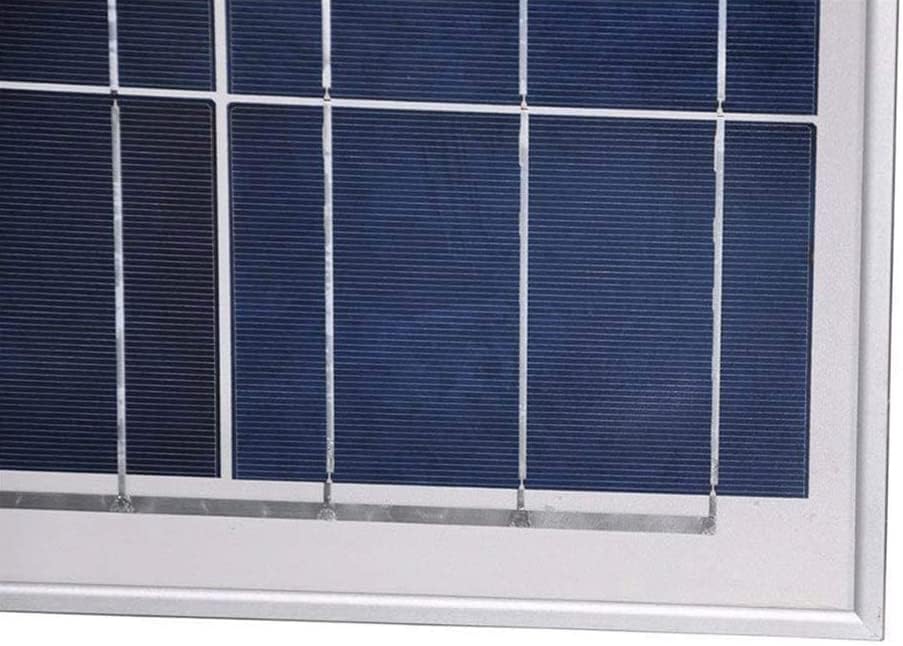

The AUECOOR 100 Watt 12 Volt Polycrystalline Solar Panel is a key component in establishing an off-grid solar energy system.

Why choose AUECOOR solar panel ?
- High efficiency design
- Designed to withstand heavy snow and wind loads.
- Pre-drilled holes on the back of the panel
- Diodes are pre-installed in junction box

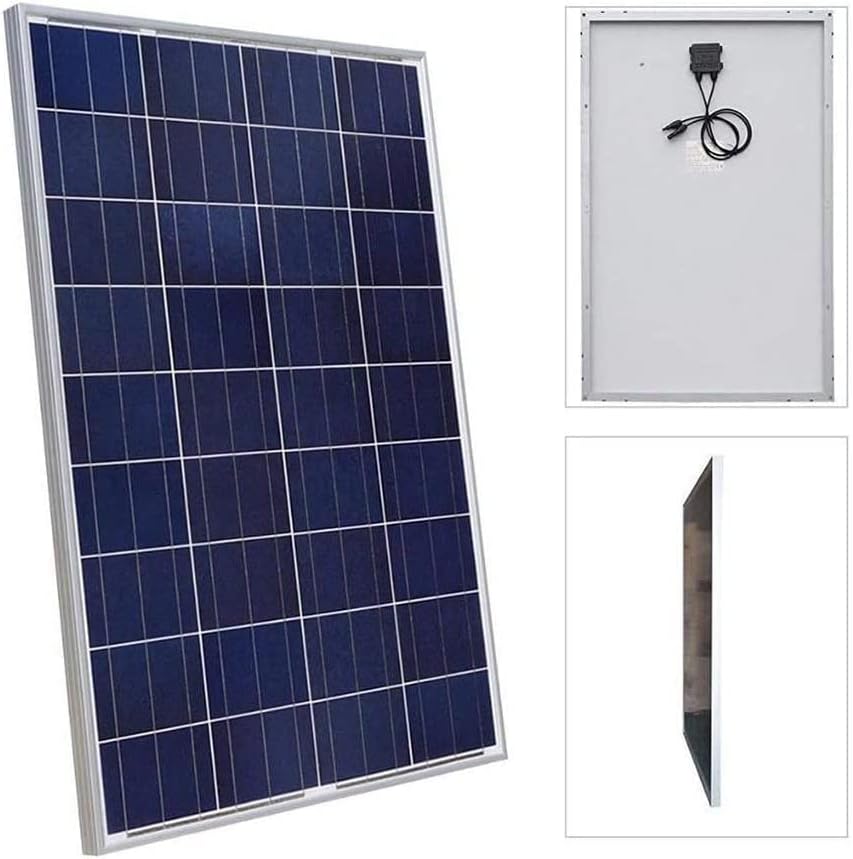

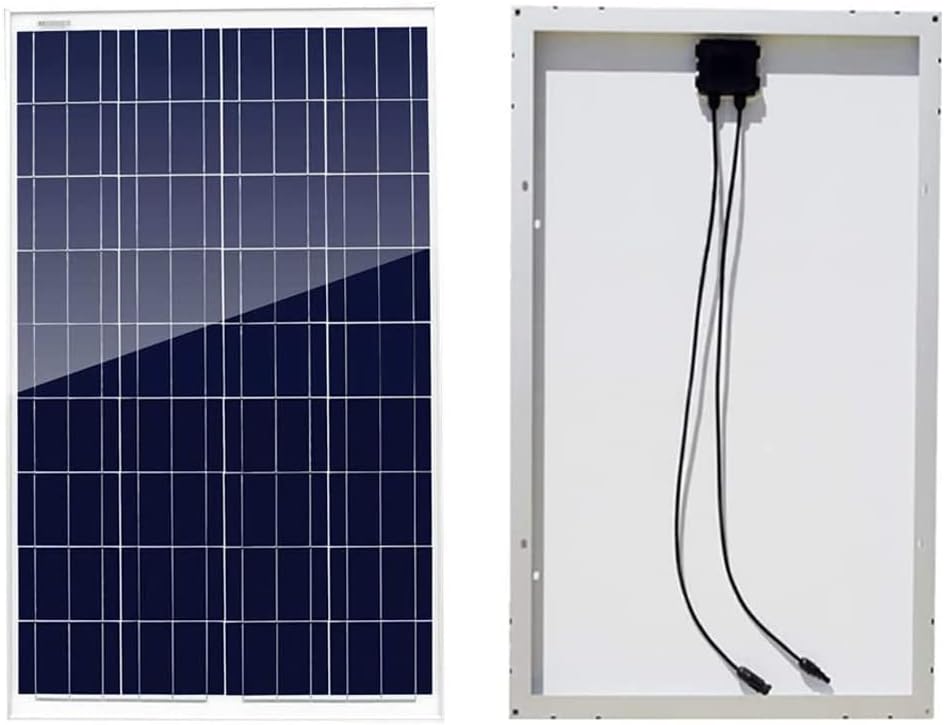

* 100W 18V Poly Solar Panel Specification:
Maximum Power: 100W
Optimum Operating Voltage (Vmp): 18 V
Open-Circuit Voltage (Voc): 21.6 V
Optimum Operating Current (Imp): 5.55 A
Short-Circuit Current (Isc): 6.11A
Dimensions: 1025*671*30mm / 40.35 X 26.42 X1.18 In
Weight: 16.53 lbs (7.5KG)
90cm of special cable with connectors attached.

*400W Wind Turbine Specification:
Rated power: 400W
Rated voltage DC27-54V
Battery voltage: DC 12/24V
Start-up wind speed: 2.5m/s
Rated wind speed: 10.5m/s
Number of blades: 5
Material of wind leaf: carbon fiber composite
Rotor diameter: 1.2M
Rated speed: 800MINRPM
Net weight: 8KG

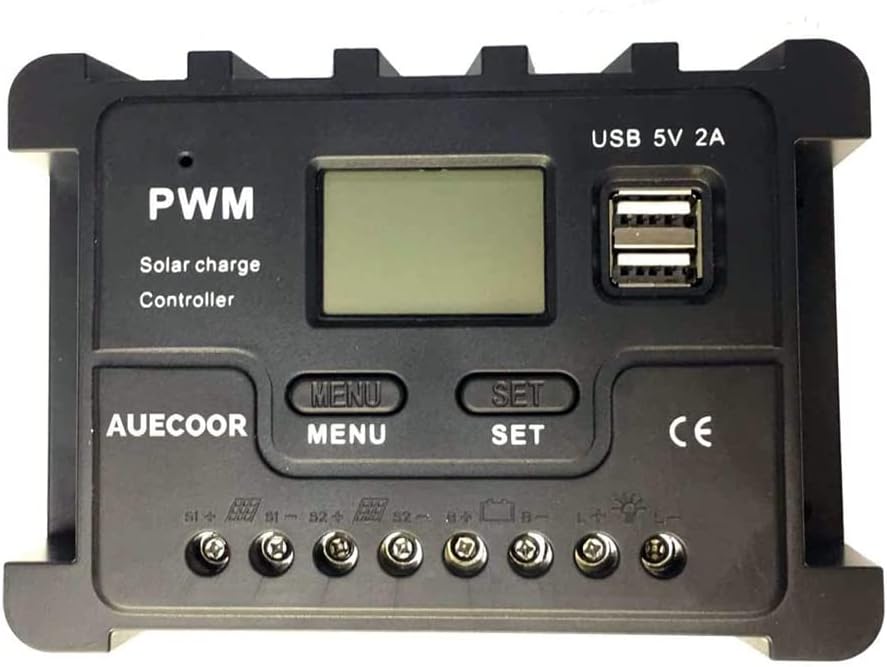

* PWM 20A LCD 12V/24V Solar Controller
Features:
Build-in industrial mirco controller
Intuitive 25%-100% power indicator
Fully 4-stage PWM charge management
Reverse current protection, low heat production

Please feel free to contact AUECOOR if need any help.
Solar kit will be delivered in multiple packages.
